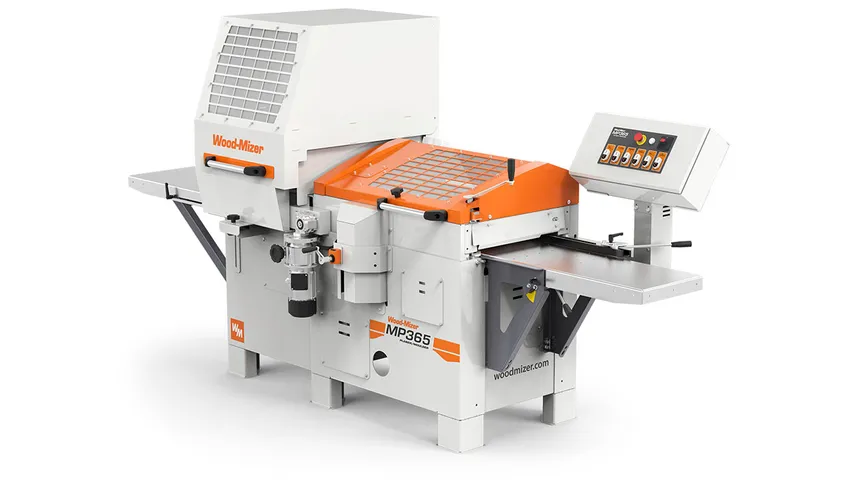

MP365 Planer / Moulder

As low as

For the ultimate in workshop flexibility for producing whatever your client demands, the MP365 gives you the full functionality of a four-sided planer/moulder, plus a fifth spindle cutter that can tilt up to 270 degrees, so you can add additional profiles from any side, or attach sanding or brushing tools to deliver a final finish to your profiled timber.
Request Info
18 People watching this product now!

Description

Specifications
4-sided processing
Planing Width 15-350 mm
Planing Height 15-155 mm
Min. Material Length 450 mm
2-sided processing
Planing Width 15-380 mm
Planing Height 15-230 mm
Min. Material Length 450 mm
1-sided processing
Planing Width 15-380 mm
Planing Height 15-230 mm
Min. Material Length 450 mm
Top Horizontal Cutterhead
Diameter 88 mm
Width 510 mm
Power 5.5 kW
Max. Planing Depth 5 mm
Max. Moulding Depth 20 mm
Bottom Horizontal Cutterhead
Diameter 72 mm
Width 410 mm
Power 4 kW
Max. Planing Depth 5 mm
Max. Moulding Depth 5 mm
Side Cutterheads
Spindle Diameter 30 mm
Max. Height 160 mm
Max. Diameter 140 mm
Power 3 kW
Max. Planing Depth 5 mm
Max. Moulding Depth 20 mm
Additional Cutterhead
Standard Spindle DIameter 30 mm
Spindle for Shaft Tools 1-20 mm
Power 3 kW
Power
Total Power 13.75 kW
Power Requirements 3-phase, 400 V, 50 Hz, 39.1 A
Feed System
Power 0.75 kW
Feed Speed 3-15 m/min
Dust Collection Specifications
Dust Extraction Ports 1x 125 mm
4x 100 mm
Recommended Airflow 5000 m3/h
