Sawyer Friendly Portable Sawmill with an Entry-Level Price
Entry-level portable sawmill with sawyer friendly features including reliable Command Pro 9.5HP gas engine, rev & run blade action, quick up/down, quick-set log handling, and more!
About This Product

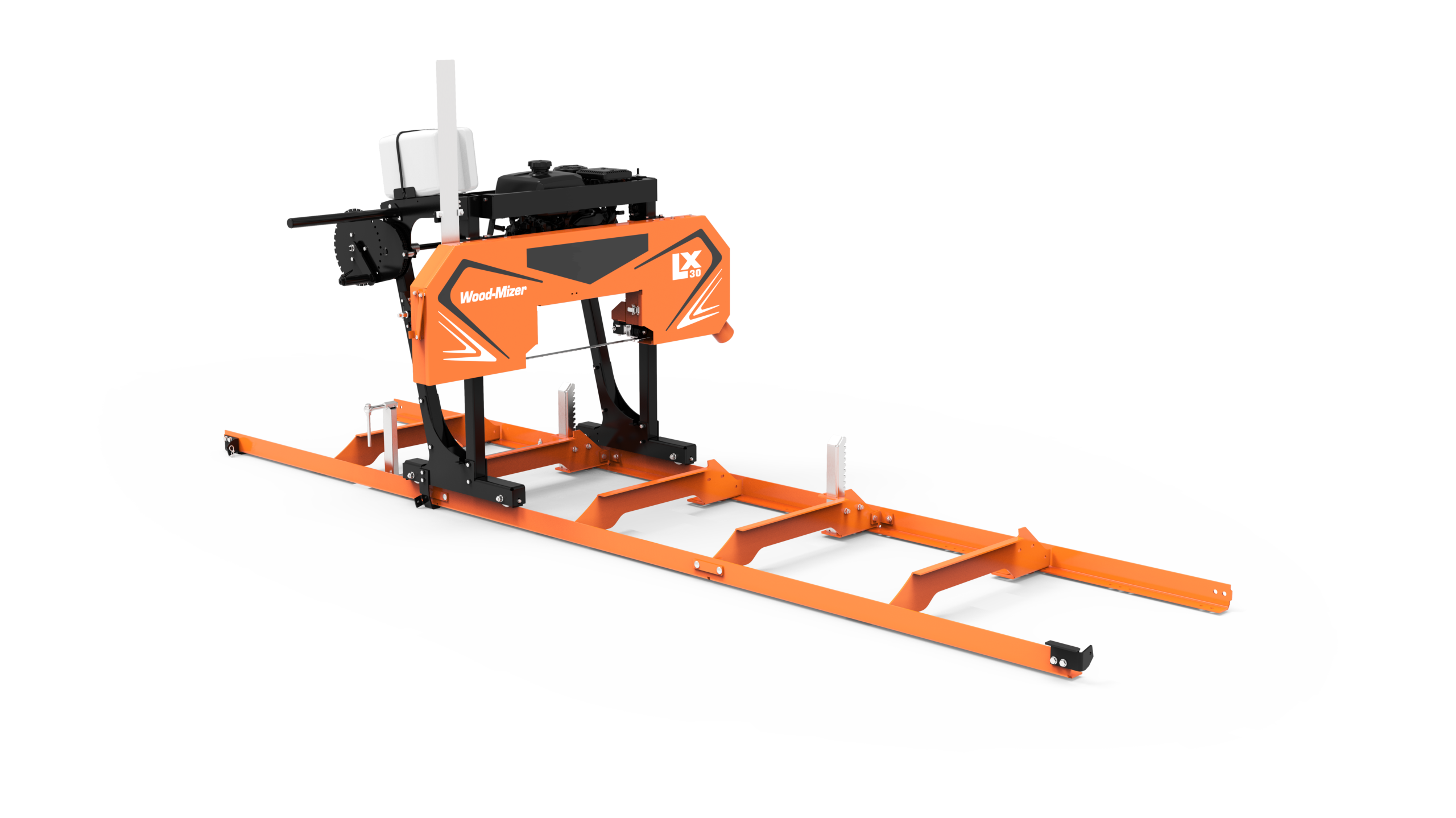

The LX30 portable sawmill combines sawyer-friendly features with an entry-level price, making it an exceptional value for anyone who wants the freedom of sawing their own boards and slabs! Saw softwood and hardwood logs up to 56cm in diameter with a 54.6cm width of cut and a 19cm depth of cut – enough capacity for the hobby sawyer. Additional features, including a reliable Command Pro 9.5HP gas engine, rev & run blade action, high-performance blade guide rollers, quick up/down sawhead, and quick-set log handling, provide a sawyer-friendly sawing experience. With the LX30 portable sawmill, owning a Wood-Mizer is now more affordable than ever!
Specifications
| Power | |
|---|---|
| Power Selections | 7kW (9.5HP gas) |
| Cutting Capacity | |
| Max Width of Cut | 546mm (21.5") |
| Max Log Diameter | 56cm (22") |
| Max Cant Width | 50cm (19.75") |
| Production Rate | up to .37m³/hr (140 bd ft/hr) |
| Max Depth of Cut | 19cm (7.4") |
| Max Log Length | 3.3m (10' 10") |
| Max Log Length (with extensions) | Unlimited |
| Log Weight | 544kg (1,200 lbs) |
| Blade | |
| Blade Length | 3.2m (126") |
| Blade Guides Style | Roller Guides |
| Blade Thickness | 0.89mm (0.035") 1mm (.042'') |
| Blade Width | 32mm (1 1/4'') |
| Blade Guides Size | 31.75mm (1 1/4") |
| Blade Wheels | |
| Blade Wheel Diameter | 391mm (15 3/8”) |
| Blade Wheel Type | Belted Blade Wheels |
| Head Features and Options | |
| Operator Location | Walk Along Push Feed |
| Setworks | N/A |
| Head Forward/Reverse | Push Feed |
| Head Up/Down | Hand Crank |
| Blade Engagement | Centrifugal Clutch |
| Bed Features and Options | |
| Log Turning | Manual |
| Log Loading | Manual |
| Trailer Package | N/A |
| Log Clamping | 1 Adjustable Log Clamp |
| Additional Bed Options | 1.2m (4') Bed Extensions |
