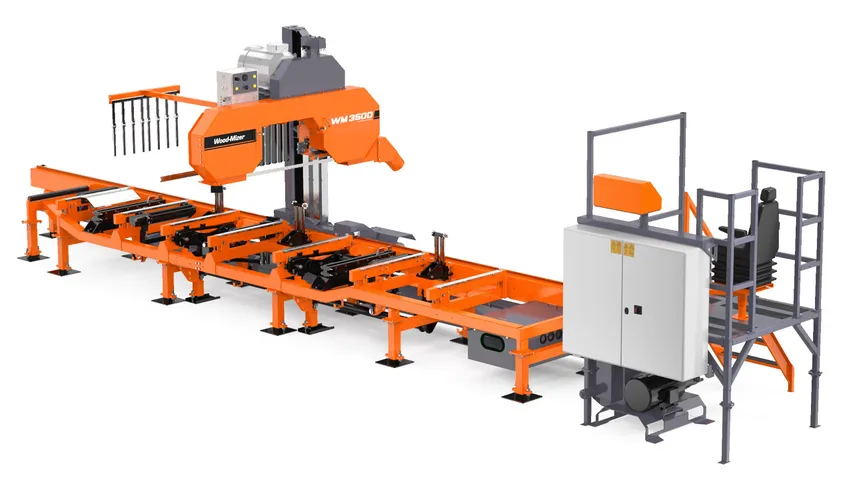

WM3500 Industrial Sawmill

As low as

Get a personalized quote from our sales team based on your needs and goals.
10 People watching this product now!

Description

The WM3500 is a proven industrial thin-kerf sawmill for primary log breakdown, and for cutting logs which cannot be processed in an automated line. The WM3500 delivers higher log yield at lower investment and operating cost than alternatives, increasing profitability and ability to produce diverse products quickly.

The WM3500 requires only one operator to manage log handling, sawing, and remove finished boards for further processing. Powerful computer setworks, centralised controls, and heavy-duty hydraulic functions enable the operator to focus on producing quality timber at a high production rate.

The WM3500’s wide throat capacity cuts large diameter logs into boards or cants with help from the bidirectional chain turner, hydraulic toeboards, and heavy-duty log clamp.

The WM3500 uses thin-kerf, narrow band blades that maximise log yield and minimise waste and operational costs – increasing profits and competitiveness.

Specifications
Power
Power22 kW Electric
Cutting Capacity
Max. Log Diameter100 cm
Max. Width of Cut86 cm
Max. Cant Width78.5 cm
Max. Depth of Cut33 cm
Max. Clamp Width66 cm
Min. Clamp Width5 cm
Head Features and Options
SetworksComputer Setworks
Head Up/DownElectric
Head Forward/ReverseElectric
Blade Guide ArmElectric
Blade LubricationAutomatic
Blade Tension SystemPneumatic
DebarkerOptional
Sawdust Collection Port Diameter150 mm (6")
Additional OptionsLaser Sight
Roller, Double Block Blade Guide
Pantograph
Board Return Arms
Blade
Length5000 mm
Width38 mm
Blade Wheels
Blade Wheel Diameter635 mm
Blade Wheel TypeBelted
Blade Wheel MaterialCast Iron
Bed Features and Options
Bed ConstructionMonorail
Angled Bed RailsN/A
Bed ExtensionsN/A
Trailer PackageN/A
Bed FeaturesOperator Station
Log Handling
ManualN/A
STANDARD Hydraulic2 Single Vertical Supports
Central Clamp
Bi-directional Chain Turner
Log Leveling Roller
Power Roller
2 Hold-Down Clamps
Hydraulic Pump 5.5 kW
SUPER HydraulicCentral Clamp
Log Leveling Roller
Power Roller
3 Double Vertical Supports
2 Chain Turners
2 Hold-down Clamps
Hydraulic Pump 7.5 kW
Sawmill Features and Options
Frame ConstructionCantilever
Power Requirements3 Phases, 400 V, 50 Hz
Shop Air Supply110 PSI
StandardsCE
OptionsIncline Conveyor
Transfer Deck
Log Deck 3.6 m
Log Deck 6 m
Heavy-Duty Bed With Short Conveyor
Air-Conditioned Operator Cab
