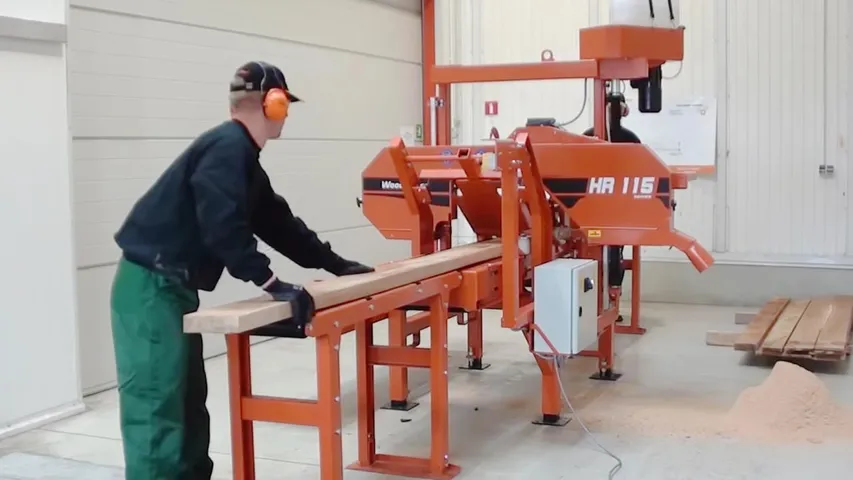

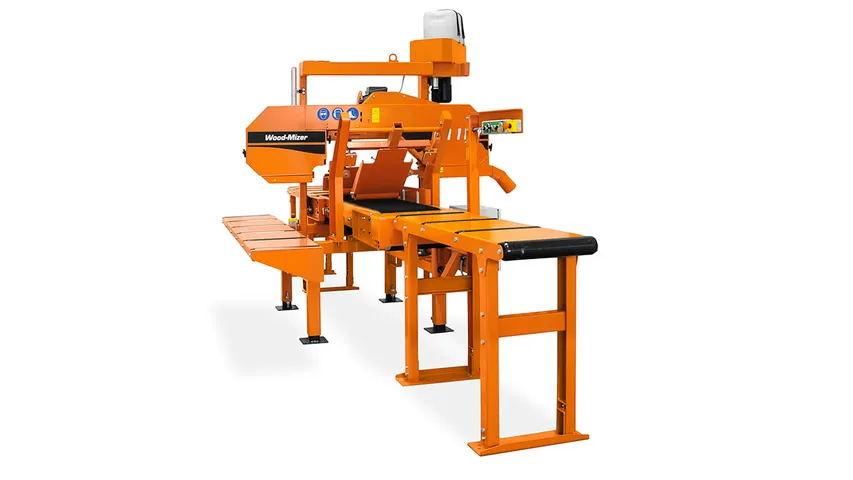

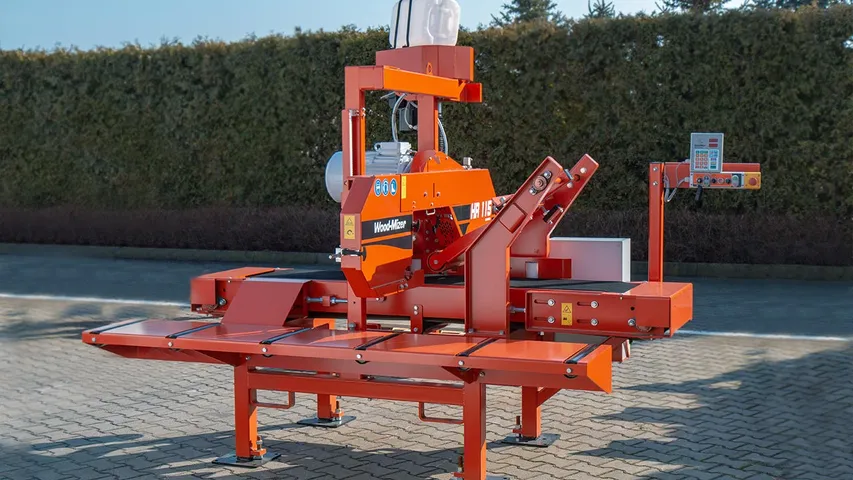

The HR115 horizontal resaw comes standard with more features and power for higher productivity up to 20 metres per minute.
Quickly process cants up to 400 mm wide into standard sized timber with the HR115. Maximum cutting height is 280 mm. Head height is adjusted electrically, and optional setworks are available. The variable belt speed is adjustable depending on the material being cut – up to 20 metres per minute.

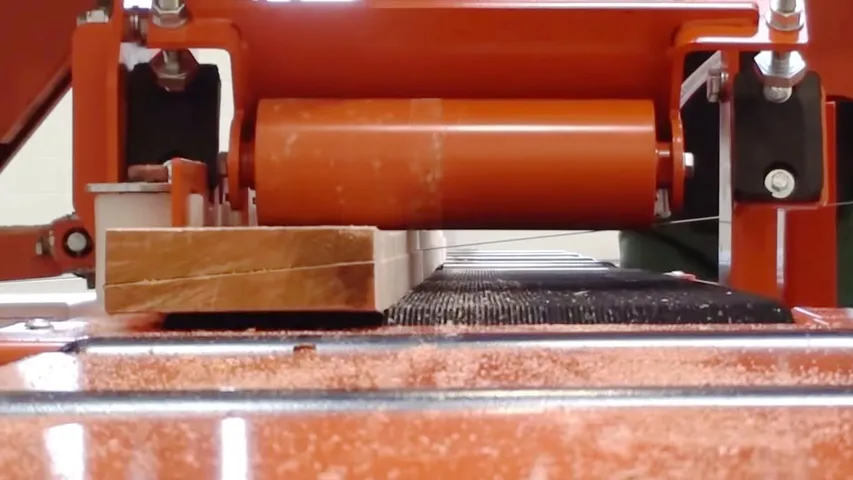

Two standard hold-down rollers keep cants steady during cutting. In-feed and out-feed roller tables, as well as a side roller table facilitate material handling, as well as returning uncut cants for another pass. To produce tapered products such as house siding, the head easily adjusts from 0° - 8°.
Specifications
| Power Selections | |
|---|---|
| Power Selections | 7.5kW (10HP) electric 11kW (15HP) electric |
| Cutting Capacities | |
| Max Cant Length | Unlimited |
| Blade | |
| Blade Length | 4,010mm (158'') |
| Blade Wheel Diameter | 710mm (28") |
| Blade Wheel Type | Steel, dynamically balanced |
| Blade Thickness | 0.89mm (0.035") 1.07 mm (0.042") |
| Blade Width | 32mm (1 1/4'') 35mm (1.37") |
| Head Features & Options | |
| Setworks | Setworks with digital position controls |
| Head Configuration | Horizontal |
| Controls Configuration | Control Panel on Machine |
| Feed System & Operation | |
| Feed Speed | 0-27m/min (0-88.5 ft/min) |
| Material Hold-down | Pneumatic Hold-Down Rollers & Idle Top Roller |
